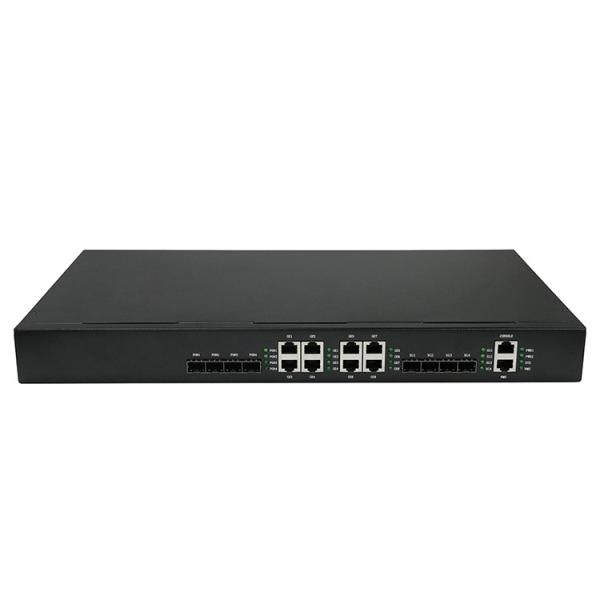

Triple Play 4 Port Epon Olt Optical Line Termination 1U FTTB

Name: Triple Play 4 Port Epon Olt Optical Line Termination 1U FTTB
Brand: UT-King
Price: 1 USD

Wholesale Triple Play 4 Port Epon Olt Optical Line Termination 1U FTTB from china suppliers

Brand Name : UT-King

Model Number : EP7004

Certification : CE,ROHS,ISO

Place of Origin : China

MOQ : 1pcs

Payment Terms : T/T, Western Union

Supply Ability : 10pcs/day

Delivery Time : 3-5 workdays

Packaging Details : 1 pcs 1 carton

Product name : EPON OLT

Power supply : AC: input 100～240V　50/60Hz; DC: input 36V～75V;

Pon port : 4

Type : 4 pon olt

Wavelength : RX 1310nm,TX 1490nm

Power consumption : 40W

Application : FTTH FTTB FTTX

Weight : 5kg

Max splitting ratio : 1:64

Oem/odm : Yes,Welcome

Warranty : 1 year

Operating temperature : 0 ~ 50 degrees C

Contact Now

Fiber Optic OLT EPON Triple Play FTTB FTTH 1U 4 Port EPON OLT Equipment

Description

EPON OLT 4PON(UT-EP7004) ,the most effective access technology, is increasingly used in telecom broadband access, cable broadband access, FTTx, intelligent electric grid and surveillance.It is a small rack type EPON OLT. It consists of a EPON OLT and the network management card. I wors with EPON ONU series and ODN to establish a passive optic network.

Each PON port of 4 ports EPON OLT can support 64(max) terminal ONUs. It supports 10～20km transmission distance at the base of high bandwidth, and supplies full line speed L2/L3 transition capacity.

It supports maximum 256 Logical Link Identifiers (LLID) and Dynamic Bandwidth Allocation (DBA). It is adapt to small fiber access network, such as towns, villages, which don’t have large quantity users. 4 Ports EPON system greatly lowers the cost to establish network and assure high bandwidth. It is also adapt to FTTH/FTTB/FTTO projects, to implement fiber to the home, such as IP phone, Ethernet data and IPTV services access.

Features

Complies with ITU.G.984.x, provides comprehensive GPON network compatibility

Downstream rates of up to 2.488Gbps and upstream rates up to 1.244Gbps
Fiber access and gigabit port provide incredibly fast transfer speeds
Supports OMCI remote management

Parameter

Item	EP7004
Service Port	4PON port,41.25G SFP & 8*10/100/1000M RJ45 for uplink
Operating wavelength	1310 (RX)/1490(TX) 1.25G Upstream /1.25G Downstream
Capacity	1:64(max)
Redundancy Design	Support AC input or DC input
Power Supply	AC: input 100～240V　50/60Hz; DC: input 36V～75V;
Power Consumption	≤40W
Dimensions (Width x Height x Depth)	440mm×44mm×260mm
Weight (Full-Loaded)	≤4.6kg
Environmental Requirements	Working temperature: -10°C～55°C Storage temperature: -40°C～70°C Relative humidity: 10%～90%, non-condensing

Item
EPON traits	Support IEEE802.3ah Support DBA with minimum1Kbps granularity adjustable Support 1Gbps up link and down link symmetrical bandwidth Support AES-128 encryption to each Logical Link Identifier Support powerful OAM function, implement telnet management, maintenance and upgrade Support auto discovery and auto register of ONU (real-time operation)
Network management	Support GUI management based on SNMP Support Local serial interface management and local serial interface management and Telnet GUI management based on CLI
Other functions	Support IGMPv1/v2 protocol report, query and leave message mouse Support DHCP Snooping Support Ipv4 address learning based at DHCP Snooping Support ARP Snooping, QoS etc
