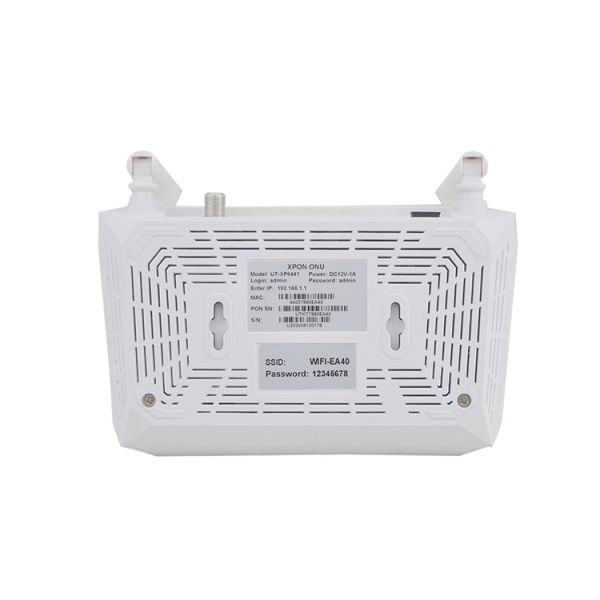

3FE Fiber Optic Network Router Gpon Terminal 1POTS Catv HGU

Product Categories

Shenzhen UT-King Technology Co., Ltd.

Contact Now

Name: 3FE Fiber Optic Network Router Gpon Terminal 1POTS Catv HGU
Brand: UT-King
Price: 15 USD

Brand Name : UT-King

Model Number : UT-XP6441

Certification : iso ce fc

Place of Origin : China

MOQ : 1 PCS

Price : 15-18 usd/pcs

Payment Terms : T/T, Western Union, MoneyGram,Credit Card

Supply Ability : 1000pcs/week

Delivery Time : 3-7 days

Packaging Details : 1pcs/1box 20pcs/carton

Product Name : XPON ONU

Brand : UT-King

Function : 1ge+3fe+1tel+CATV+wifi

Wavelength : Tx 1310nm, Rx1490nm

Name : XPON ONU

Applications Distance : 20km

Chipset : RTL9603C+RTL8192FR+LE9643 BOB(i7525BN)

External Power Supply : DC 12V/1A

Optical Interface : SC APC

Chip Spec : CPU 950MHz,DDR2 128MB

Flash : SPI NAND Flash 128MB

Contact Now

FTTH ONU 1GE+3FE+1POTS XPON ONU Catv Fiber Optic Gpon onu router with wifi

XPON ONT series is designed as HGU(Home Gateway Unit) in deferent FTTH solutions , The carrier- class FTTH application provides data service access.
XPON ONT series is based on mature and stable, cost-effective XPON technology. It can switch automatically with EPON and GPON when it access to the EPON OLT or GPON OLT.
XPON ONT series adopts high reliability, easy management, configuration flexibility and good quality of service (QoS) guarantees to meet the technical performance of the module of China Telecom EPON CTC3,0 and GPON Standard of ITU-TG.984.X
XPON ONT series is designed by Realtek chipset 9603C

Technical item	Details
PON Interface	1 G/EPON port(EPON PX20+ and GPON Class B+)
	Receiving sensitivity: ≤-27dBm
	Transmitting optical power: 0~+4dBm
	Transmission distance: 20KM
Wavelength	Tx: 1310nm, Rx: 1490nm
Optical Interface	SC/APC Connector
LAN Interface	1 x 10/100/1000Mbps and 3 x 10/100Mbps auto adaptive Ethernet interfaces. Full/Half, RJ45 connector
CATV Interface	RF, optical power : +2~-18dBm
	Optical reflection loss: ≥45dB
	Optical receiving wavelength: 1550±10nm
	RF frequency range: 47~1000MHz, RF output impedance: 75Ω
	RF output level: 78dBuV
	AGC range: 0~-15dBm
	MER: ≥32dB@-15dBm
Wireless	Compliant with IEEE802.11b/g/n,
	Operating frequency: 2.400-2.4835GHz
	support MIMO, rate up to 300Mbps,
	2T2R,2 external antenna 5dBi,
	Support: Multiple SSID
	Channel: Auto
	Modulation type: DSSS, CCK and OFDM
	Encoding scheme: BPSK, QPSK, 16QAM and 64QAM
LED	13, For Status of POWER, LOS, PON, SYS, LAN1~LAN4 ,WIFI, WPS, Internet, Worn, Normal(CATV)
Push-Button	3,For Function of Reset, WLAN, WPS
Operating Condition	Temperature: 0℃~+50℃
Operating Condition	Humidity: 10%～90%(non-condensing)
Storing Condition	Temperature: -30℃~+60℃
Storing Condition	Humidity: 10%~90%(non-condensing)
Power Supply	DC 12V/1A
Power Consumption	≤6W
Dimension	155mm×92mm×34mm(L×W×H)
Net Weight	0.24Kg

Pilot Lamp	Status	Description
PWR	On	The device is powered up.
PWR	Off	The device is powered down.
PON	On	The device has registered to the PON system.
	Blink	The device is registering the PON system.
	Off	The device registration is incorrect.
LOS	Blink	The device doses not receive optical signals.
LOS	Off	The device has received optical signal.
SYS	On	The device system runs normally.
SYS	Off	The device system runs abnormally.
INTERNET	Blink	The device network connection is normal.
INTERNET	Off	The device network connection is abnormal.
WIFI	On	The WIFI interface is up.
	Blink	The WIFI interface is sending or/and receiving data (ACT).
	Off	The WIFI interface is down.
WPS	Blink	The WIFI interface is securely establishing a connection.
WPS	Off	The WIFI interface does not establish a secure connection.
LAN1~LAN4	On	Port (LANx) is connected properly (LINK).
	Blink	Port (LANx) is sending or/and receiving data (ACT).
	Off	Port (LANx) connection exception or not connected.
Worn (CATV)	On	Input optical power is higher than 3dbm or lower than -13dbm
Worn (CATV)	Off	Input optical power is between -13dbm and 3dbm
Normal (CATV)	On	Input optical power is between -13dbm and 3dbm
Normal (CATV)	Off	Input optical power is higher than 3dbm or lower than -13dbm
